How to Co-Develop Firmware and PCB Architecture for Your Branded Custom Digital Clock Project
Why Cheap Digital Clocks Drift: The Reality of 30-Day Deployment Failures
When a procurement team signs off on a bulk shipment of 2,000 off-the-shelf digital clocks for a hospital or school, the line-item price looks like an easy win. The Reality of these projects, however, hits about four weeks after installation. Suddenly, facility managers are fielding complaints that ward displays are three minutes ahead of the surgical wing. What starts as a minor lag quickly scales into widespread Day Deployment Failures across the campus. Why Cheap Digital Clocks fail so consistently in commercial environments comes down to a fundamental mismatch between B-grade consumer components and the physical realities of modern buildings.
At the heart of the drift problem is the typical 32.768 kHz tuning-fork crystal. In a cheap clock, this crystal is rarely calibrated or temperature-compensated. While a drift of 20 ppm (parts per million) sounds negligible on a datasheet, it translates to roughly 50 seconds of drift per month. Introduce HVAC temperature swings, concrete walls, and electromagnetic noise from wireless access points, and that deviation easily doubles. Without microsecond menu logic and active software drift compensation written directly into the firmware, a bulk deployment quickly turns into a high-overhead maintenance headache of manual adjustments.
System lockups represent another common failure point. When these low-cost clocks try to sync over a crowded Wi-Fi network, unoptimized network stack routines frequently hang in endless packet-retry loops. The clock’s display freezes because the single-core IC cannot handle a network timeout while simultaneously driving the display. For a highly reliable custom digital clock, the hardware architecture must isolate these functions. Engineering teams should insist on dual-display clock designs featuring automatic battery-switching circuitry to protect the real-time clock (RTC) memory, keeping the internal timing engine isolated from power dips.
Comparing PCB Components: How Oscillator and MCU Selection Affects Long-Term Accuracy

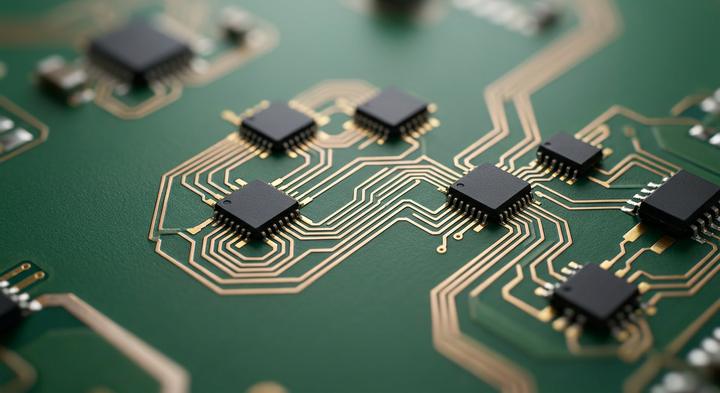

A close-up view of stable PCB routing and high-grade oscillator placements.
Which hardware components prevent a custom digital clock from losing time and crashing during wireless updates?
When a buyer asks why their freshly installed clock system lost 5 minutes in a single month, the answer is always found on the PCB layout, not the plastic housing. Choosing components for a custom digital clock requires balancing immediate unit costs against five-year maintenance and labor overhead. Specifying these silicon rules early in the RFQ stage prevents suppliers from cutting corners with cheap, unstable components that degrade quickly under field temperatures.
| Target Application | Buyer Type | Key Decision Factors | Hardware Component Fit | Primary Risks | Engineering Verdict |
|---|---|---|---|---|---|
| Precision Healthcare | Clinical Procurement | Thermal drift under 10°C to 60°C swings in medical wards | Dedicated ±2 ppm TCXO (such as DS3231) | Display cumulative drift over 5 minutes per year; sync lag | Mandate an external TCXO crystal over MCU-internal RC oscillators |
| Networked Offices | Corporate Facilities | Secure background wireless syncing and remote diagnostics | 8MB Dual-Partition SPI Flash MCU | Firmware bricking or bootloops during connection dropouts | Sizing MCU memory at 8MB minimum enables reliable A/B partitions |
| High-RF Environments | Industrial OEM | Current spikes and transients when RF modules peak up to 450mA | Decoupling capacitors placed within 2mm of power pins | MCU noise resets and false triggers during peak sync cycles | Require 0.1µF and 10µF caps close to the power pin traces |
| Powered Facilities | Utility Managers | Minimizing continuous current draw to protect battery budget | Custom-glass LCD over multiplexed LED arrays | High battery replacement labor and early display fading | Avoid high-current LEDs; static custom LCDs keep draw below 15µA |
Balancing Component Budgets
We regularly see procurement teams squeeze the component budget to save less than a dollar per unit on the oscillator, only to spend ten times that amount on field-maintenance labor when the displays drift out of sync. A digital clock that cannot maintain its accuracy destroys user trust, and an unshielded board that crashes during a background firmware update can brick hundreds of wall-mounted units simultaneously. Before approving a production run, demand to see the schematic and PCB routing files. If the decoupling capacitors are located further than 2mm from the main MCU pins, or if the factory cannot prove they are using dual-partition flash memory, reject the sample. Never let a supplier convince you that an uncompensated internal oscillator can deliver long-term accuracy when temperature fluctuations are a daily reality.
Wired vs. Wireless Sync: Matching Your Physical Facility to Clock Firmware Design
The physical layout of modern facilities requires specific network sync planning.
On a typical walkthrough of a half-finished clinic, a handheld network tester can drop from five bars to zero the moment you step behind a single sheet of foil-backed drywall. Many procurement teams treat wireless connectivity as a universal upgrade, but real-world buildings present messy RF attenuation through reinforced concrete, steel framing, and heavy brick. When sync packets are blocked by these structural barriers, standard clocks will freeze, drain their batteries, or drift within weeks. Avoid this by Matching Your Physical Facility to Clock Firmware Design. The physical layout must dictate the synchronization protocol, not the other way around. Rather than letting a clock loop endlessly on a missed packet, a calibrated manufacturer writes specific fallback connection routines into local EEPROM registers.
The High-Security Medical Wing
A clinical IT manager cannot risk wireless interference with sensitive telemetry, nor can they tolerate clocks drifting during medical charting. For these environments, a hardwired Power-over-Ethernet (PoE) deployment is the only sensible option. If the primary network controller drops during an update, the clock firmware must immediately execute local NTP polling failovers to secondary IP addresses. If the connection fails entirely, the system must read from its hardwired RTC memory backup when connections drop, drawing on a physical battery backup to maintain accuracy without stalling the display.
The Open-Plan Commercial Office In Practice
Deploying a system across a Plan Commercial Office In a concrete high-rise makes physical Ethernet runs to dozens of small meeting rooms cost-prohibitive. Most buyers choose Wireless Sync over local Wi-Fi or Bluetooth mesh here. Because these displays are often battery-powered, constant network polling will kill the lifespan in less than a month. The firmware must be tuned for energy-efficient Wi-Fi sleep cycles, waking the transceiver only once a day to check NTP packets before shutting it down. Adding light-sensor auto-dimming ensures the LEDs pull minimal current when the office is empty.
The Reinforced Industrial Facility
Heavy industrial sites are the ultimate stress test for wireless synchronization. High-voltage machinery, metal storage racks, and concrete firewalls create RF noise that laboratory tests simply cannot predict. When standard clocks miss a connection here, they enter a high-frequency retry loop that overheats the processor. Custom digital clock designs store time zone offsets, static IPs, and shift schedules on local EEPROM registers. When a connection drops, a smart rollback routine keeps the display running on its internal oscillator and restricts network retries to once every few hours.
Make sure your supplier can show you the exact state-machine diagram of how the clock firmware behaves when it misses three consecutive sync cycles before you sign the bulk purchase order.
Four Common Engineering Blunders That Ruin Custom Digital Clock Runs
Two things decide whether a custom wall timer survives its first week on a commercial floor: routing discipline and component boundaries. When you move a design from a clean bench prototype to a high-speed automated SMT line, tiny breadboard compromises turn into systemic field failures.
Software delay loops are perfectly adequate for keeping time if the MCU firmware is light.
No software delay loop survives a firmware update. The moment your microcontroller handles an NTP sync, processes a button press, or drives an active-matrix display, the CPU cycle load shifts, causing the clock to drift by minutes a day. A reliable custom digital clock requires a dedicated hardware Real-Time Clock (RTC) chip—like a temperature-compensated DS3231 with its own crystal. If a supplier suggests using the main MCU’s internal clock tree for a precision Time Clock, reject the layout.
A single shared power rail is a harmless way to cut down on board size and component costs.
This layout choice is the primary cause of high-frequency display flicker and random micro-resets. Multiplexed LED segments pull up to 300mA in sudden spikes; if they share power lines with sensitive digital logic, the resulting voltage drops will crash the processor. A stable design isolates high-draw driver lines from logic lanes using independent low-dropout (LDO) regulators; at YGhao, we enforce this isolation on every custom board to guarantee clean power delivery.
Modern microcontrollers rarely crash, making external hardware watchdogs a redundant expense.
In industrial environments, electromagnetic interference and electrostatic discharge will eventually lock up any processor. If your units are mounted ten feet up on warehouse walls, climbing a ladder to cycle the power is an embarrassing, costly failure. A dedicated, physical hardware watchdog IC operates independently of the MCU, pulling the physical reset pin low if it doesn’t receive a heartbeat pulse. Never trust an internal software watchdog; if the CPU registers lock up, the internal watchdog often freezes right along with them.
Programming individual boards via standard header pins is fast enough for mass production.
Auditing the Factory Floor: QC Checkpoints for Your SMT and Assembly Run
Moving decoupling capacitors within that strict 2mm boundary looks great on a CAD layout, but those rules only protect your custom digital clock if the Factory Floor can execute the design consistently. High-speed SMT lines operate at incredibly thin margins of error; a fraction of a millimeter of thermal drift in the reflow oven will quietly ruin an otherwise perfect board. To keep a high-volume Assembly Run Even, you need software-enforced gates rather than manual operator checks. When you walk a manufacturer’s facility in Shenzhen, look past the clean floors and check their actual digital audit trail during the Line Validation phase.
Assembly Auditing Checklist
| Ask | Expected evidence | Red flag | Responsible party |
|---|---|---|---|
| Line Validation & Automatic Optical Inspection | Daily 3D Automatic Optical Inspection records for the 0.5mm pitch MCU pins, proving exact component placement accuracy and alignment offsets. | Operators manual-clicking past AOI warnings to speed up the line, or relying on low-magnification magnifying glasses for batch sign-offs. | Line Supervisor |
| Solder Joint Reliability | Exported 3D Solder Paste Inspection logs tracking paste height, area, and volume on heavy connector pins and power rails. | Total absence of SPI machine logging, or high rates of manual rework using standard hand-soldering irons right after the oven. | Reflow Oven Technician |
| Address Programming & Database Logs | An automated flashing jig that queries a central server to assign unique MAC addresses, writing real-time records directly to the Database Logs. | Operators flashing MACs via local offline spreadsheet files, which virtually guarantees duplicate IDs in the field. | Firmware Programming Lead |
| Hour Functional Aging & Sync Testing | Racks running a full 48-Hour Functional Aging cycle, recording continuous Sync Testing logs over the wireless network. | Clocks stacked on standard ambient warehouse shelves for just 2 hours without a single active power-on or network ping log. | Quality Assurance Manager |
Anyone can talk about high yields during a factory tour. The reality is found in the raw CSV and database exports. If a supplier cannot pull historical SPI data or show a centralized database logging MAC allocations, they are managing quality control manually—a method that falls apart when a pilot order scales to a 10,000-unit run. At YGhao, we maintain machine-logged transparency from SMT to boxing. Before you sign off on a bulk run, ask us to pull a live SPI log or share a sample quality report from our current production runs.
Scaling Your Project: Production Capacities, MOQs, and the Transition to Bulk Assembly
While keeping decoupling capacitors within two millimeters of the MCU pins prevents timing drift on a bench prototype, scaling that precision across a ten-thousand-unit run is an entirely different battle. The real work shifts from the engineering desk to the factory floor, specifically to managing the transition to Bulk Assembly While safeguarding your yield rate. At YGhao, we run this process inside a 4,000-square-meter facility in Shenzhen where we house high-speed, ISO 9001-certified SMT lines, DIP manual-insertion bays, and functional testing setups under a single management team. Keeping these processes in one building stops the finger-pointing that always happens when you split PCB assembly, plastic molding, and final boxing between different subcontractors. For procurement, this integration is also where we define the line between flexible prototyping and rigid commercial limits. We can run small, lower-volume PCB pilots to let you debug firmware in the field, but once you design a custom housing, the tooling requires a hard minimum order quantity of 1,000 units because cutting and hardening steel molds is an unyielding, upfront expense.
To protect that tooling budget, a final schematic sign-off must happen before anyone cuts steel for the injection molds; catching a misrouted trace on a board is a quick fix, but catching it after you have pressed 1,000 units of plastic enclosures is a financial catastrophe. During this final pre-production review, we typically look for small, practical component adjustments—like swapping rare, oversized capacitors for standardized surface-mount equivalents—to shave thousands of dollars off your SMT setup fees and feeder configurations. Rather than gambling on an unverified layout, submit your design files for a straightforward schematic and DFM review, or download the 2026 OEM custom clock catalog to evaluate our existing, modification-ready stock enclosures.
