Custom Digital Clock Sample Sign-Off: What to Verify in Firmware and PCB Stability Trials

The Engineering Sign-Off Checklist for Custom Digital Clock Prototypes and Pilot Runs

Why Custom Digital Clock Failures Occur After Prototype Approval

Abstract representation of electronic frequency stability and timing calibration.

Every hardware engineer knows the quiet dread of the first high-speed production run. A single hand-soldered prototype sits on your bench, ticking flawlessly. It gets signed off, the purchase order for 10,000 units is approved, and three weeks later the SMT line starts spitting out boards. Suddenly, 8% of the display segments are half-lit, and the microcontrollers are locking up. The issue isn’t a bad design; it’s the physical gap between manual assembly and high-speed SMT lines. While a technician can coax a prototype to work by hand-adjusting a crooked capacitor, high-speed SMT nozzle placement, reflow oven thermal cycles, and automated solder paste viscosity changes don’t make exceptions. If your board layout hasn’t been optimized for high-volume tolerances, physical drift during reflow will bridge ultra-fine pitch pins on your display drivers every single time.

Then there is the quiet failure: timing drift. A custom digital clock that looks perfect during a three-minute factory QC inspection can easily lose up to five minutes a month once it hits the field. This rarely happens because the chip itself is broken. Usually, the culprit is a cheap 32.768 kHz crystal oscillator paired with unbalanced PCB capacitance. Standard oscillators are highly sensitive to trace lengths and local thermal radiation. If your PCB traces are too long, unshielded, or run too close to a warm power supply regulator, the crystal’s resonant frequency shifts.

Firmware sleep-state bugs are equally destructive to B2B projects. A batch of battery-powered wall clocks might pass initial bench checks because they were tested while plugged into a continuous lab power supply. But if the microcontroller’s firmware doesn’t properly execute deep-sleep routines, or leaves internal pull-up resistors floating, the hardware will draw a constant microamp phantom current. Instead of the promised two-year operating life, the battery dies in three weeks. By the time the end consumer realizes the issue, you are facing container-sized RMA volumes and a logistical nightmare.

The PCB and Firmware Stability Benchmarks for Hardware Sign-Off

How do you verify custom digital clock PCB stability before signing off on mass production?

Golden samples hand-soldered on an engineer’s bench almost never reflect what rolls off an SMT line under manufacturing tolerances. We need strict, measurable Firmware Stability Benchmarks established during the pilot run to catch drift, voltage sag, and transient noise before tooling is locked down. We call this the final Hardware Sign phase. Off How-to checklists usually ignore the real stresses, but a disciplined hardware team knows that validation requires thermal sweeps and destructive electrical testing.

Enforcing Pilot-Run Compliance

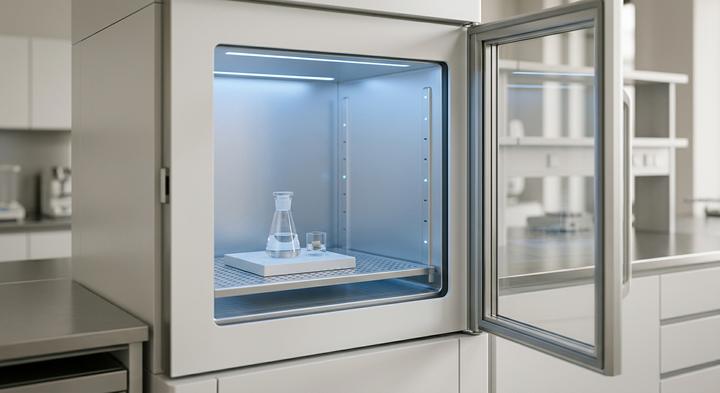

Industrial climate-testing chambers verify components under extreme temperature variations.

A pilot run of 50 to 100 SMT boards is where you verify these limits before releasing the BOM for mass production. If you rely strictly on factory self-reporting, you’ll likely receive a generic pass certificate while field failures creep up to 3% after three months of consumer use. Make these verification tests part of your contract manufacturer’s quality agreements, requiring a signed test report from a third-party lab for the initial SMT batch. Our rule of thumb: if a design cannot survive an hour of thermal sweeps or basic ESD testing on the pilot bench, it will certainly fail in the cargo container.

Precision vs. Cost: Choosing the Right Clock Spec for Your Application

An engineering lead reviewing two conflicting ODM clock quotes on a Friday morning knows that saving forty cents on a basic crystal oscillator will cause thousands of drift failures once winter temperatures hit. Budget allocations must align tightly with where the finished unit will operate, balancing high-precision timing components against standard commercial parts that keep high-volume production runs viable. Before signing off, you must map the environmental stresses of your application, an industrial shop floor requiring a completely different component class than a promotional desktop gift. Misjudging this operating environment is the fastest way to turn a high-volume shipment into a logistical and financial nightmare.

High-Reliability Industrial Interfaces (TCXO Requirements)

Industrial environments present extreme thermal fluctuations and severe electrical noise. If a custom digital clock is deployed in a hospital ward or near heavy manufacturing machinery, a standard commercial quartz crystal will drift up to several seconds a day due to ambient heat shifts. To maintain critical system synchronization, the bill of materials must specify temperature-compensated crystal oscillators (TCXOs) rated to ±2 ppm across the full operating range. At YGhao, we couple these high-precision crystals with optocoupled isolation on the RS485 or Ethernet lines and double-layer PCB shielding to isolate the MCU from voltage transients. Skipping the TCXO to save a dollar on the BOM almost always results in spending ten times that amount on truck rolls for manual field calibration.

Standby-Optimized Home and Consumer Clocks For Retail

For bedside consumer clocks, the engineering challenge shifts entirely from sub-second accuracy to battery lifespan and display power management. These consumer units typically rely on low-cost 32.768 kHz tuning-fork crystals, which keeps the silicon cost low while firmware optimization does the heavy lifting. The MCU is programmed to sleep deeply, waking up in microsecond bursts only to refresh the display or read the ambient temperature and humidity sensor ICs. Instead of constant sensor polling, the firmware uses an ambient light sensor to adjust the backlight duty cycle, dimming the LEDs in dark rooms to conserve power. This ensures a multi-year battery life on standard cells without driving up the hardware cost.

Bulk Promotional Runs (Chassis and IC Cost Reduction)

Three Prototype Testing Mistakes That Fuel High RMA Rates

An approved prototype is not a guarantee of production line yield; it is simply proof that a skilled engineer can hand-assemble a single working unit. Rushing the pilot phase to meet a retail launch window inevitably shifts the burden of quality control to your end customers. In custom digital clock manufacturing, bypassing stress tests on the first SMT run is the fastest way to trigger high return rates and damage retail relationships.

We verified the prototype on our lab’s stable DC power supply, so the digital module is electrically sound.

A benchtop laboratory power supply has near-perfect transient response and zero impedance, which bears no resemblance to a decaying alkaline battery. When physical batteries decay to 1.1V, the microamp pull of the MCU during active cycles causes deep voltage sags. Without a properly configured brownout reset (BOR), the microcontroller fails to execute a clean shutdown, locking up in an intermediate state that keeps display segments permanently energized. YGhao’s engineering team runs programmable power sweeps down to 1.0V on pilot units to guarantee the system restarts cleanly rather than freezing in the field.

The clock runs perfectly at room temperature in the office, so shipping container heat won’t affect the timing crystal.

A basic quartz crystal that ticks precisely at 22°C will drift or stall when exposed to environmental extremes. During summer transit, internal temperatures of steel shipping containers regularly exceed 60°C. If your custom digital clock relies on an uncompensated tuning-fork crystal without firmware-level calibration, the timing will drift by minutes before the product even clears customs. To prevent this, the pilot batch must undergo thermal chamber sweeps from 10°C to 60°C to map the crystal’s actual frequency-temperature curve and verify timing stability.

Since the sample display looks bright, we can skip the full 72-hour burn-in trial and freeze our component list later.

Skipping the 72-hour burn-in trial because the initial sample works is a shortcut that lets early component failures and unstable oscillators slip through to packaging. Infant mortality in passive components and driver ICs typically shows up in the first 48 hours of continuous operation. Furthermore, leaving the Approved Vendor List open during the pilot run allows the factory to swap out secondary components, like screen driver ICs or capacitors, to offset material margins. To secure your yield, make the locked Approved Vendor List a binding part of your manufacturing agreement before the first production run starts.

Auditing the Factory: SMT Lines, Calibration Gear, and Quality Controls

While selecting a temperature-compensated crystal oscillator manages clock-drift on paper, those physical specs mean nothing if the assembly line runs blind. Verifying these tolerances requires shifting focus from the showroom floor to the actual physical controls operating during a live production run.

A pristine factory lobby with interactive screens says very little about the actual integrity of your custom digital clock hardware run. Under tight delivery schedules, generic suppliers often experience shortages of premium components, tempting floor managers to swap out high-grade crystals for cheap, unbranded equivalents that drift within weeks. At YGhao, we run these audits at the SMT line level, ensuring that active engineering controls prevent unauthorized substitutions before the solder even melts. Demanding these Quality Controls Now—paired with real-time AOI logs and dedicated environmental testing—is the only way to ensure the final shipment matches the golden sample. Our final step is establishing the commercial terms, warranty buffers, and shipping procedures needed to clear customs without delay.

Moving to Production: Technical Sign-Off, Tooling, and Ordering MOQs

With your clock source and BOM costs balanced on paper, the challenge shifts from engineering simulation to the cold reality of a physical assembly line in Shenzhen. Before a single component is populated on the SMT line, both your engineering lead and the factory manager must physically sign, date, and archive identical pilot units under a strict Master Sample protocol. This Technical Sign process—sealed with tamper-evident stickers—is your only real insurance against future QC disputes over shifting LCD contrast, mismatched plastics, or mushy tactile switches. Do not rely on digital photos or PDF approvals; if it is not on the sealed Master Sample, the line workers will not check it. Moving to custom injection-molded housings introduces a hard lead time of 30 to 45 days for steel tooling, which realistically dictates a production MOQ of 2,000 to 3,000 units to amortize the setup and machining costs. Additionally, international compliance testing for CE, FCC, and RoHS cannot be run on hand-soldered prototypes. Test labs require actual production units off the tooling line, adding a four-week certification buffer before your first cargo container can legally clear customs. Skip this step, and you risk customs holding an entire shipment over an incomplete RoHS report.

Avoiding these pre-production bottlenecks requires solving manufacturing clearance issues before cutting any steel. Instead of guessing at draft angles or trace clearances, you can submit your PCB layouts, 3D CAD files, or functional RFQ specifications directly to YGhao for a transparent pre-production DFM review. Our engineering team in Shenzhen will analyze your layout for automated SMT placement compatibility, verify wall thicknesses for plastic injection, and supply a line-item quote with zero hidden margins. To evaluate standard housing designs that eliminate custom tooling costs altogether, request our custom digital clock spec sheets and OEM/ODM product catalog to begin your pre-production planning with realistic lead times.
