Before You Sign the PO: A Custom Digital Clock Checklist for Quality Control and SMT Testing

7 Technical Parameters to Audit Before Approving Your Custom Digital Clock Mass Production Run

Why the True Cost of a Custom Digital Clock Batch is Decided on the SMT Line

A digital clock that drifts five seconds a year is a minor calibration issue; a clock that goes completely black in month four is a contract dispute. When calculating the True Cost of a Custom Digital Clock Batch, the number on the pro forma invoice is only the first line of a much longer balance sheet. If you are an industrial system integrator mounting synchronized PoE or NTP clocks across a new hospital wing, a single dead segment on a wall display isn’t just an eyesore—it is a three-hundred-dollar truck roll and a wasted morning for a field technician. Even a retail brand manager buying five thousand budget-sensitive promotional LED timers can’t afford a five percent failure rate once the units hit distributor shelves. Yet both buyers frequently make the same mistake: they audit the plastic tooling and the front glass while ignoring the SMT line where the actual life of the hardware is decided.

The weak point is almost never the firmware; it is the physical joint where the LED driver chips meet the PCB. If a factory runs uncalibrated reflow ovens with uneven thermal zones, or cuts corners with cheap solder paste, micro-fractures form under the fine-pitch driver ICs. These tiny gaps easily pass the standard “power-on” test at the end of the line because the raw metal is still making physical contact. Once the unit is installed, however, the daily thermal cycle of the building—coupled with heat from the LEDs themselves—causes the board to expand and contract. Over a few months, these micro-fractures split completely. To catch this before the deposit is paid, an experienced buyer bypasses the showroom and asks to see the 3D Solder Paste Inspection (SPI) logs and the reflow oven’s thermal profile data. Standard automated optical inspection (AOI) is the baseline, but Solder Paste Inspection is what prevents the latent field failures that ruin a brand’s reputation.

This is where Line Timing and thermal management intersect on the factory floor. If a manufacturer cannot show you real-time SMT tracking records and crystal oscillator verification logs, they are asking you to finance their learning curve. Before you sign off on a production run, demand to see the SMT thermal calibration records from the last thirty days. It is the only way to know if you are buying a reliable timing network or a ticking warranty liability.

Evaluating the 7 Technical Parameters That Prevent Field Failure

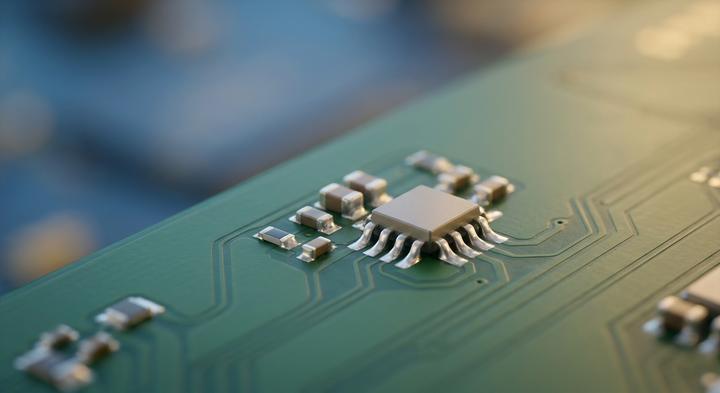

Advanced SMT component placement and solder verification prevent latent field failures in high-volume electronic production.

How do I specify a custom digital clock that won’t fail in the field?

Buying a custom digital clock usually starts with a simple RFQ, but choosing a supplier purely on unit cost is a fast way to guarantee premature warranty claims. A commercial clock built for a carpeted office will quickly fail on a factory floor or a logistics dock. To prevent downtime, procurement teams must look past the external metal case and evaluate the actual physical components that handle thermal load, voltage spikes, and environmental exposure.

The matrix below outlines the engineering realities that separate industrial-grade timing hardware from light-duty alternatives.

Field Failure How

At YGhao, we know how easily a nice-looking aluminum case can hide a cheap interior. True reliability is determined on the SMT line and inside the bill of materials. If a potential supplier cannot provide the 3D SPI logs, thermal imaging profiles, or ASTM weathering data to back up their claims, they are likely selling Light Duty consumer hardware with an industrial price tag. Insisting on these parameters during the initial RFQ stage protects your project from expensive field maintenance and protects your operational uptime from unbudgeted failures.

Matching Your Hardware Spec to the Installation Site: Three Common Environments

Matching the hardware specifications to the physical realities of different installation sites prevents premature degradation.

Walk onto a high-output production floor during a heavy machinery cycle, and you will see the exact moment a standard commercial display fails: the screen flickers, the internal clock drifts due to ambient heat, and the device becomes a maintenance liability. Selecting a custom digital clock is not just about digit height; it is about matching your hardware spec to the installation site to prevent early field failures.

Harsh Industrial Facilities and Production Floors In Heavy Manufacturing

Standard clock enclosures act like dust traps in heavy industrial settings. Within months, airborne metallic dust and fine particulate settle behind the lens and coat the PCB, causing conductive shorts during high-humidity cycles. To survive on these production floors, the clock requires a dust-tight housing sealed with a durable IP66-rated silicone gasket. If the ambient temperature routinely climbs toward 50°C, typical lithium backup batteries will swell and leak; you need to specify internal supercapacitors for non-volatile memory backup instead. Furthermore, because large inductive loads send severe voltage transients down the line, the internal power supply must include robust surge protectors alongside high-decibel audible alarms designed to pierce a 90 dB machinery hum.

Healthcare Cleanrooms and Synchronized Facility Networks In Sterile Zones

Installing new wiring inside a sterile medical suite introduces contamination risks and drives up contractor fees. For Healthcare Cleanrooms and Synchronized Facility Networks In Sterile Zones, the baseline is Power over Ethernet (PoE) to combine low-voltage power and NTP time synchronization over a single network drop. The physical housing must feature a smooth, vent-free faceplate to prevent particulate accumulation, while the lens cover must be a specialized chemical-resistant acrylic. Standard commercial plastics quickly cloud, yellow, or stress-crack under daily washdowns of aggressive isopropyl alcohol and chlorine disinfectants. Keep the internal components entirely solid-state to guarantee silent, fanless operation that never disrupts clinical operations.

Visibility Commercial Retail Displays and Brand Integration

Under high-lux, multi-source studio lights in a modern flagship store, cheap LED segments look washed out and ruin the architectural aesthetic. These environments require high-contrast, multi-color SMD LEDs with wide-angle viewing profiles, set behind an ultra-matte, non-reflective lens. To achieve a clean, integrated look without paying tens of thousands of dollars in tooling, YGhao’s Prototyping Path modifies standard aluminum extrusion chassis while customizing the PCB firmware during the initial sampling phase. This allows the engineering team to integrate slimline bezels, configure remote RF control options that map to your existing AV systems, and calibrate brightness curves for specific store lighting profiles. As a rule of thumb, always ask your manufacturer if they can adapt an existing chassis profile before you agree to fund an entirely new custom molding run.

Where the Shipments Break: Sourcing Blind Spots in Bulk Clock Procurement

Yield loss on a ten-thousand-unit run is almost always a physical failure of scaling, not a design error. A prototype that works on an R&D bench proves only that a single hand-assembled board is viable. Volume production introduces manufacturing tolerances and procurement pressures that quietly ruin shipments. This is true in Bulk Clock Procurement Bulk programs where subtle component swaps or tooling wear compound over thousands of units. To prevent field failures, procurement teams must look past the initial golden sample and address the systemic sourcing blind spots where physical shipments break.

An IP65 rating on the spec sheet guarantees the clock display will not fog up in wet environments.

Water ingress in industrial clocks is driven by thermal cycling, not just direct spray. When cold washdown hits a warm enclosure, internal air contracts, creating a vacuum that pulls humid air through tiny structural gaps. Without a membrane breather valve to equalize pressure, this moisture condenses on the cold inner lens when ambient temperatures drop.

Injection molding tools are a static asset that ensures consistent casing alignment throughout the production run.

Cheap aluminum tooling wears down quickly, causing casing seams to warp and dimensions to drift as a run scales. When housings warp, internal PCB mounts shift, straining SMT solder joints and destroying ingress seals. Securing guaranteed mold lifespans and hardened steel tooling (like H13) from a manufacturer like YGhao ensures unit ten thousand fits as precisely as unit one.

Minor passive component substitutions do not impact display reliability or timing accuracy.

Swapping specified Japanese electrolytic capacitors for unbranded local alternatives is how factories protect margins, but it degrades display brightness and causes controller lockups under continuous 24/7 duty. These low-grade capacitors experience rapid thermal degradation, starving the LED driver of clean voltage. Insist on a locked Bill of Materials (BOM) that prohibits component substitution without written engineering approval.

A basic functional QA test on the shipping dock is sufficient to catch bulk manufacturing defects.

A brief power-on test fails to expose latent semiconductor defects that trigger early field failures. Catching these infant mortality risks requires a 48-hour continuous power and thermal burn-in protocol before releasing cargo. If a supplier cannot provide automated logs from their burn-in racks, they are letting your installation site serve as their testing ground. Is your supplier ready to share the raw thermal chamber logs before you release the final wire transfer?

Vetting the Factory Floor: Evidence-Based Quality Audits for Digital Clock Production

How do you run a factory audit on a custom digital clock supplier that actually exposes reliability risks instead of just checking superficial boxes? For those conducting Factory Floor Based Quality Audits, the goal is bypassing the polished showroom to verify SMT calibration, component lot traceability, and tooling custody.

This technical checklist underpins custom Digital Clock Production How lines are vetted before any PO is signed. Demanding raw calibration logs and physical trace registers directly from the shop floor separates high-capability manufacturers from low-tier assembly shops that rely on unverified components. Putting these parameters into a binding Quality Assurance Agreement (QAA) prevents mid-run component swaps and guarantees that your custom digital clock shipment uses the same high-tolerance parts that passed the initial prototype evaluation.

Securing Your Production Run: Custom Digital Clock Capabilities and Next Steps

Next Steps Once the physical housing and display specs are mapped to the real-world dust, glare, or sterilization cycles of the installation site, the actual risk shifts to the SMT line where these clocks are built. YGhao supports these diverse physical environments by handling everything from compact, multi-layer PCB assemblies for medical machinery up to double-sided outdoor industrial clocks on the same production lines. This breadth means a procurement team does not have to split the contract between a PCB assembler and a structural metal shop; the entire custom digital clock run undergoes the same automated optical inspection (AOI) for 0201 passives and a mandatory 48-hour thermal burn-in cycle under load. Testing under continuous load is where infant-mortality failures in active components are caught, long before the boards are crated and shipped.

Moving from a preliminary drawing to production-ready timing hardware does not require a fully locked-down layout on day one. To prevent field drift caused by heat-producing components placed too close to the crystal oscillator, an engineering review of trace routing and component lead times is a necessary step before cutting steel for the enclosure. To simplify this phase, engineers and procurement leads can download the 2026 Custom Clock Spec Catalog to verify standard physical housing templates and LED driver layouts, or upload their draft Gerber files directly for a feasibility review.
