Selecting a Custom Digital Hygrometer Factory: 5 Engineering Audits Before Your First PO

Sourcing a Custom Digital Hygrometer: Engineering and Compliance Milestones to Verify First

The 0.1mm Casing Gap: Why Standard Desktop Samples Pass While Field Pilots Fail

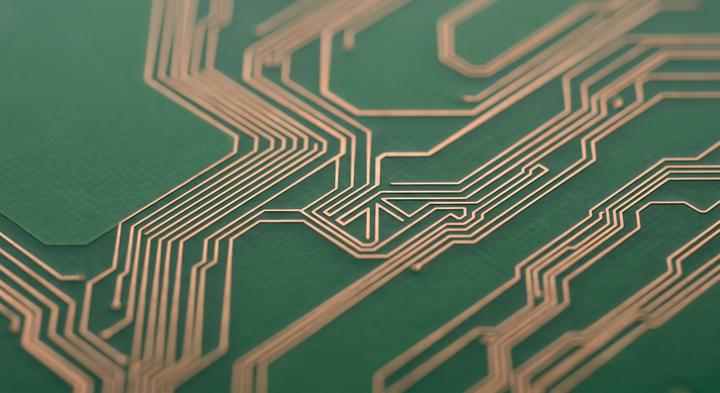

Physical isolation barriers and thermal relief slots designed on a PCB to prevent micro-climate interference.

Any QC manager who has pulled a test unit out of a cold-chain box after 48 hours of continuous environmental exposure knows the sinking feeling of watching the relative humidity drift off by a full 15% RH. On a dry test bench, that same custom digital hygrometer sample looked flawless. The display was sharp, the sensor picked up a finger-swipe’s moisture in seconds, and the initial QC sign-off was a routine rubber-stamp job. But the field isn’t a lab. When temperature drops rapidly, the air volume inside a sealed plastic enclosure contracts. If the ultrasonic welding tool didn’t melt the joint perfectly—leaving a microscopic 0.1mm gap—that tiny seam acts like a capillary tube under vacuum. It sucks in ambient condensing moisture, traps it against the sensor membrane, and holds it there long after the outside air has dried.

This is where standard bench tests fail. A quick ten-second blast of humidified air at the packing line only proves the IC is alive; it doesn’t simulate real-world thermal loads. If the PCB layout places the high-accuracy sensor too close to an active LDO regulator or a busy MCU to save a few millimeters of board space, you get a localized self-heating trap. A tiny 0.5°C temperature rise on the copper trace is enough to warp the local relative humidity calculation, creating a persistent micro-climate that makes the device lie. The underlying issue is rarely a bad sensor chip; it is the physical architecture of the enclosure and the board working against the laws of thermodynamics.

Fixing this after the injection molds are cut is an expensive nightmare of potting compounds and firmware offsets that never quite work across the entire temperature range. An experienced ODM partner like YGhao addresses this at the 3D CAD layout stage, designing physical isolation walls into the plastic tooling and dropping dedicated thermal relief slots between the MCU and the sensor chamber. Addressing the Casing Gap and thermal traps early is the only way to avoid a 5,000-unit field recall. In industrial telemetry, a design isn’t validated when the desktop sample works on a clean desk; it is validated when the first thousand units survive their first autumn in the field.

Technical Benchmarks: Separating High-Precision Factories from Assembly-Only Shops

What technical specs distinguish a precision digital hygrometer manufacturer from a basic electronics assembler?

While any board-stuffing shop can solder a sensor IC onto a PCB, maintaining industrial-grade accuracy over years of thermal cycling requires clean-room calibration paths and protective hardware layers that simple assembly lines do not possess. For procurement teams sourcing a custom digital hygrometer, auditing these underlying mechanical and metrology standards is the only way to prevent rapid field drift.

The Engineering Sign-off Checklist

To bridge the gap between initial prototype success and volume reliability, use this practical three-point engineering check during your next technical audit:

Three Harsh Environments Where Generic Hygrometers Fail and Custom Builds are Required

Pulling a plastic data logger out of an air-freight pallet at 5:30 AM only to watch the display drift past a 15% margin is how most logistics managers discover the limits of standard catalog hardware. Desktop-tested samples are highly misleading; they breeze through clean-bench evaluations but fail the moment they meet the thermal and chemical realities of real-world industrial installations. When local operating conditions shift, generic sensor casings act as moisture-retaining traps or thermal sinks that systematically skew measurement drift. True operational reliability requires adapting the physical layout of the custom digital hygrometer to the specific stress vectors of its deployment.

Chain Logistics and Cold Storage When Rapid Condensation Occurs

Moving a shipment from a frozen hold at -20°C straight onto a humid 20°C dock creates an immediate dew-point crisis. Water vapor condenses across the sensor face, flooding the chamber and pegging the readout at 100% relative humidity for hours. Off-the-shelf hygrometers act like plastic sponges in these transitions because their solid enclosures trap the liquid. For real-world cold chain tracking, the board requires an ePTFE liquid-barrier vent welded into the casing; this membrane lets individual water vapor molecules diffuse through for fast readings while physically blocking the actual water droplets from drowning the polymer element.

Commercial Greenhouses and Chemical Washdowns Agricultural Scenarios

Inside automated cultivation bays, the air is thick with more than just humidity; it is saturated with ammonia, corrosive fertilizers, and vaporized hydrogen peroxide during sanitization cycles. In these Commercial Greenhouses, generic catalog sensors fail within three weeks because these aggressive chemical agents corrode the thin-film polymer layer, throwing the calibration off permanently. Buyers who run Chemical Washdowns Agricultural facilities need a custom digital hygrometer built with protective parylene conformal coatings over the passive board components, combined with specialized PTFE-coated sintered metal caps that filter out caustic droplets without introducing a massive thermal lag.

Power Industrial Settings with Nodes Remote from Grid Lines

The Datasheet Illusion: Why System-Level Calibration Shifts Happen After Assembly

Multi-point environmental calibration is essential to eliminate the sensor’s non-linear drift under harsh conditions.

Buying components strictly off the vendor’s PDF is a fast way to get burned on the assembly line. System-level accuracy has little to do with the silicon supplier’s laboratory data, and everything to do with how the sensor is handled during manufacturing.

“The sensor chip datasheet promises ±1.8% RH, so our finished product will meet that out of the box.”

This is where the gap between silicon specs and real-world manufacturing shows up. When you run that sensor through a 260°C reflow oven, you completely dehydrate its internal polymer layer. Worse, as the board cools, volatile organic compounds (VOCs) outgassing from housing glues, flux residues, and case plastics migrate straight into that dry polymer, locking in a permanent zero-point shift. YGhao prevents this shift by mandating a 48 hour hydration recovery window to let the sensor stabilize, followed by a post-assembly bake to drive off remaining VOCs before any calibration is written to firmware.

“A simple single-point room-temperature calibration is enough to verify the production batch.”

Checking a custom digital hygrometer at only 25°C and 50% RH tells you how it behaves in an air-conditioned office, but masks major slope and gain errors. These errors emerge once the device hits cold storage under 15% RH or high-humidity environments exceeding 85% RH. A single-point check turns the calibration curve into a seesaw pivot; accuracy is fine at the center, but swings wildly at the extremes. Your procurement contract must specify multi-point chamber validation testing at both ends of the target operating spectrum.

“Once calibrated, the sensor is permanently protected against shipping-transit thermal shock.”

The cargo hold of an ocean freighter or a cargo plane is a brutal microclimate. If the supplier packs these units in standard cardboard without ESD shielding and thermal barrier packaging, moisture shifts unevenly across the membrane due to static buildup and sudden temperature drops during transit. Shipping calibrated sensors in basic bulk boxes guarantees high failure rates on arrival; secure thermal-barrier shipping lanes are a baseline requirement.

The Production Floor Stress Checklist

Before signing off on a high-volume run, you need to verify how the supplier manages stress on the production line. Insist on reviewing three specific documents: the post-reflow hydration logs proving a 48 hour recovery step, the VOC bake-out schedules for all housing adhesives, and the transit packaging specification. If the factory cannot produce these logs, they are shipping you a datasheet illusion.

The 5-Step Engineering Audit: Vetting a Hygrometer Factory’s Production Floor

While designing thermal relief slots protects sensors from heat, those CAD changes mean nothing if assembly lines slip on tolerances. Running a physical Step Engineering Audit on the Hygrometer Factory’s Production Floor Once is the only way to separate real capability from generic paper certificates.

Site Verification Benchmarks

At YGhao, we’ve found that paper certifications often mask process gaps; that’s why we tie our custom digital hygrometer builds directly to automated ECN (Engineering Change Notice) tracking and full-run chamber mapping logs. When a supplier gets defensive about showing their raw multi-point calibration records, it usually means their yield rates are slipping and they’re sorting the bad units by hand. For engineering teams drafting a baseline quality agreement, we recommend requesting a sample 100-unit calibration run or reviewing our complete factory-floor assembly specification sheet to lock down these physical benchmarks before releasing the final tooling PO.

Starting Your Engineering Run: Prototypes, Tooling, and Next Steps with YGhao

Now that the reference calibration benchmarks and physical shielding layouts are set, moving from a desktop prototype to a functional assembly line brings you face-to-face with hard physical variables. In custom digital hygrometer production, the biggest friction point isn’t the sensor chip itself—it’s the enclosure tooling timeline where commercial schedules usually fall apart. Cutting high-precision steel injection molds for a proprietary casing is a slow, unforgiving process that typically takes 30 to 45 days. If a CAD drawing has a minor wall-thickness calculation error or a misaligned snap-fit joint, that timeline resets, and you lose another month. To bypass this, we run design-for-manufacturability reviews on your files before any metal is cut. While full-scale production runs require a 1,000-unit minimum to justify setting up our multi-point calibration chambers, we run engineering pilot batches starting at 500 units. This smaller pilot run lets your team run field trials and test physical integration before committing major capital to high-volume manufacturing.

Before you sign off on the production purchase order, three interface details must align perfectly between our factory floor and your engineering team. First, we need to verify the mechanical boundary dimensions, paying close attention to the sensor’s recess depth in the casing to ensure natural air convection doesn’t turn into a moisture-trapping dead zone. Second, the ESD packaging specs need to be locked down; standard plastic trays will kill sensitive CMOS-based RH sensors before they ever reach your assembly floor. Finally, we must confirm the raw calibration data output format—whether your firmware expects standard I2C register maps or specialized hex strings. Aligning these technical realities now prevents your line from stalling later. As you map out the Next Steps for Starting Your Engineering Run, the lowest-friction way forward is to send your current 3D CAD files and sensor interface parameters directly to our engineers for a complete technical feasibility assessment and a direct tooling quote.
